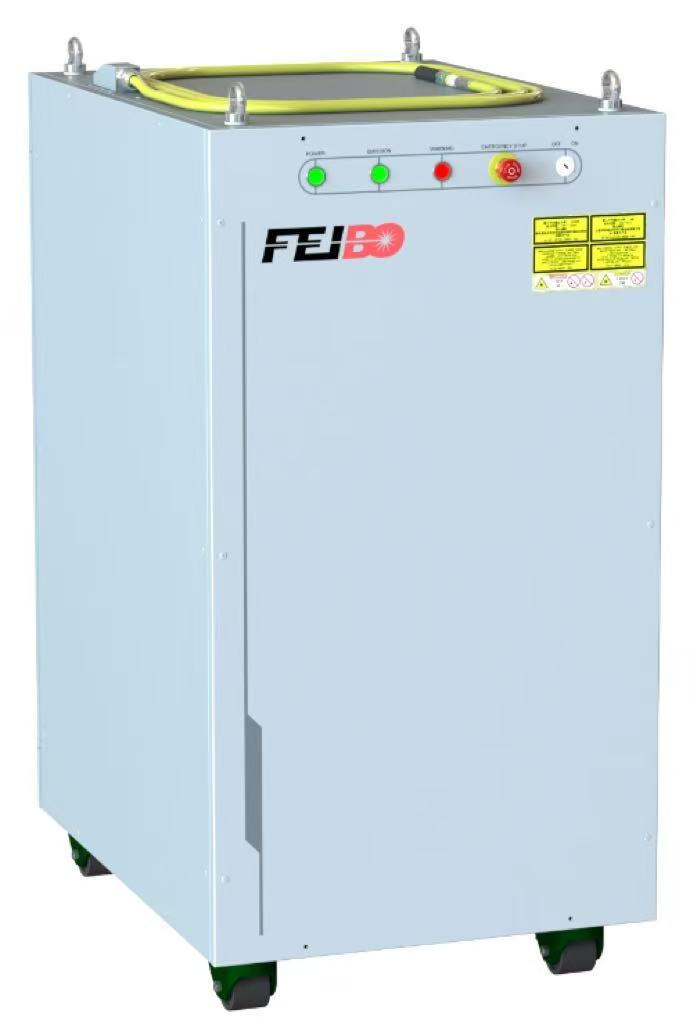

精密 QCW 2000W

关键参数              Key  Parameters

Unit

指标   Specifications

型号                                          Model Number

YDFL-2000-QCW

工作模式                                     Operation Mode

QCW/CW

偏振态                                               Polarization

Random

中心波长                             Central Wavelength

nm

1080±5

峰值功率                                       Peak Power

kW

20

输出平均功率                      Average Output Power

kW

2

最大脉冲能量                                 Max Pulse Energy

J

200

最大调制频率                   Max Modulation Freq.

kHz

20

功率调节范围           Power Tuning Range

10~ 100%

功率稳定性                                Power Stability

±1%

光学参数乘积                  Beam Parameter Product

mm×mrad

< 3.8

输出头                                        Delivery Head

QBH

纤芯直径                                    Core Diameter

um

100

输出光缆长度                  Delivery Cable Length

m

20（可定制）

输入电压                               Operating Voltage

VAC

380±10%

典型功耗                 Typical Power Consumption

W

6000

冷却方式                                  Cooling Method

Water (23℃~27℃)

工作环境温度                  Operating Temperature

℃

+5 ~ +40

储存温度                           Storage  Temperature

℃

-20 ~ +60
