工业 500W

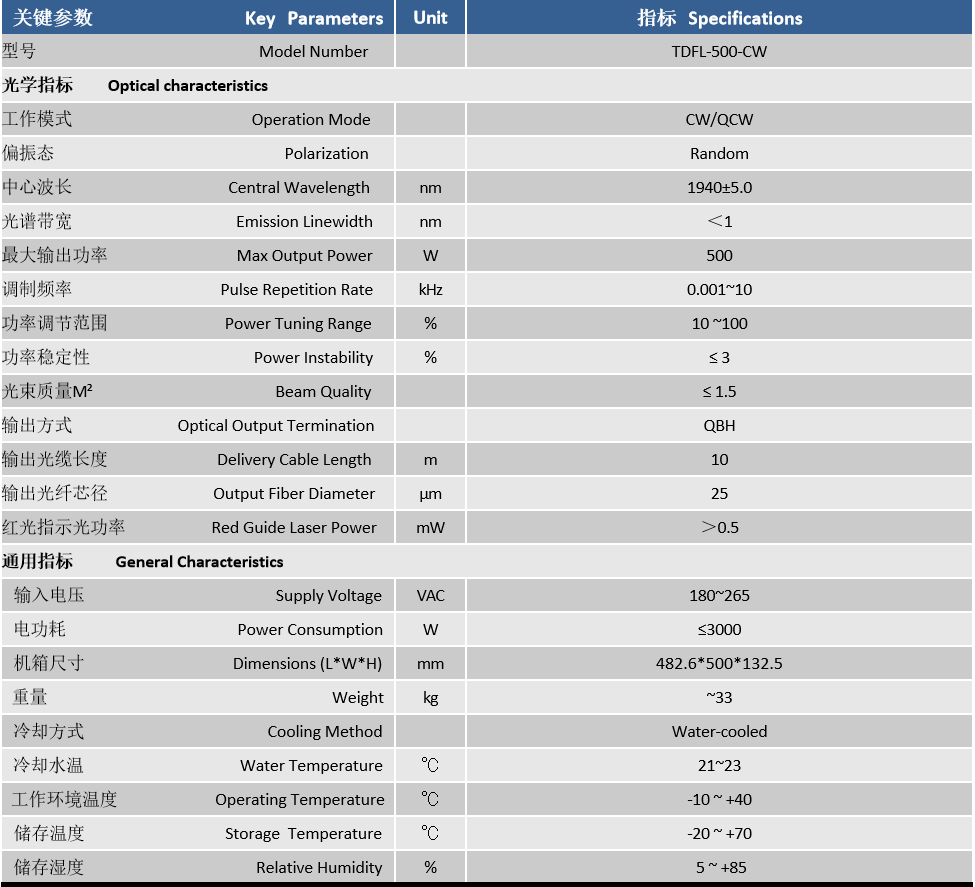

关键参数                         Key  Parameters

Unit

指标  Specifications

型号                                                         Model Number

TDFL-500-CW

光学指标         Optical characteristics

工作模式                                              Operation Mode

CW/QCW

偏振态                                                           Polarization

Random

中心波长                                        Central Wavelength

nm

1940±5.0

光谱带宽                                          Emission Linewidth

nm

＜1

最大输出功率                                 Max Output Power

W

500

调制频率                                      Pulse Repetition Rate

kHz

0.001~10

功率调节范围                              Power Tuning Range

%

10 ~100

功率稳定性                                          Power Instability

%

≤ 3

光束质量M²                                             Beam Quality

≤ 1.5

输出方式                            Optical Output Termination

QBH

输出光缆长度                            Delivery Cable Length

m

10

输出光纤芯径                           Output Fiber Diameter

μm

25

红光指示光功率                      Red Guide Laser Power

mW

＞0.5

通用指标           General Characteristics

输入电压                                                 Supply Voltage

VAC

180~265

电功耗                                            Power Consumption

W

≤3000

机箱尺寸                                      Dimensions (L*W*H)

mm

482.6*500*132.5

重量                                                                     Weight

kg

~33

冷却方式                                               Cooling Method

Water-cooled

冷却水温                                       Water Temperature

℃

21~23

工作环境温度                         Operating Temperature

℃

-10 ~ +40

储存温度                                    Storage  Temperature

℃

-20 ~ +70

储存湿度                                            Relative Humidity

%

 5 ~ +85
